(Installation Guide) Omnidesk Ascent Radiance

May 31, 2023 06:31

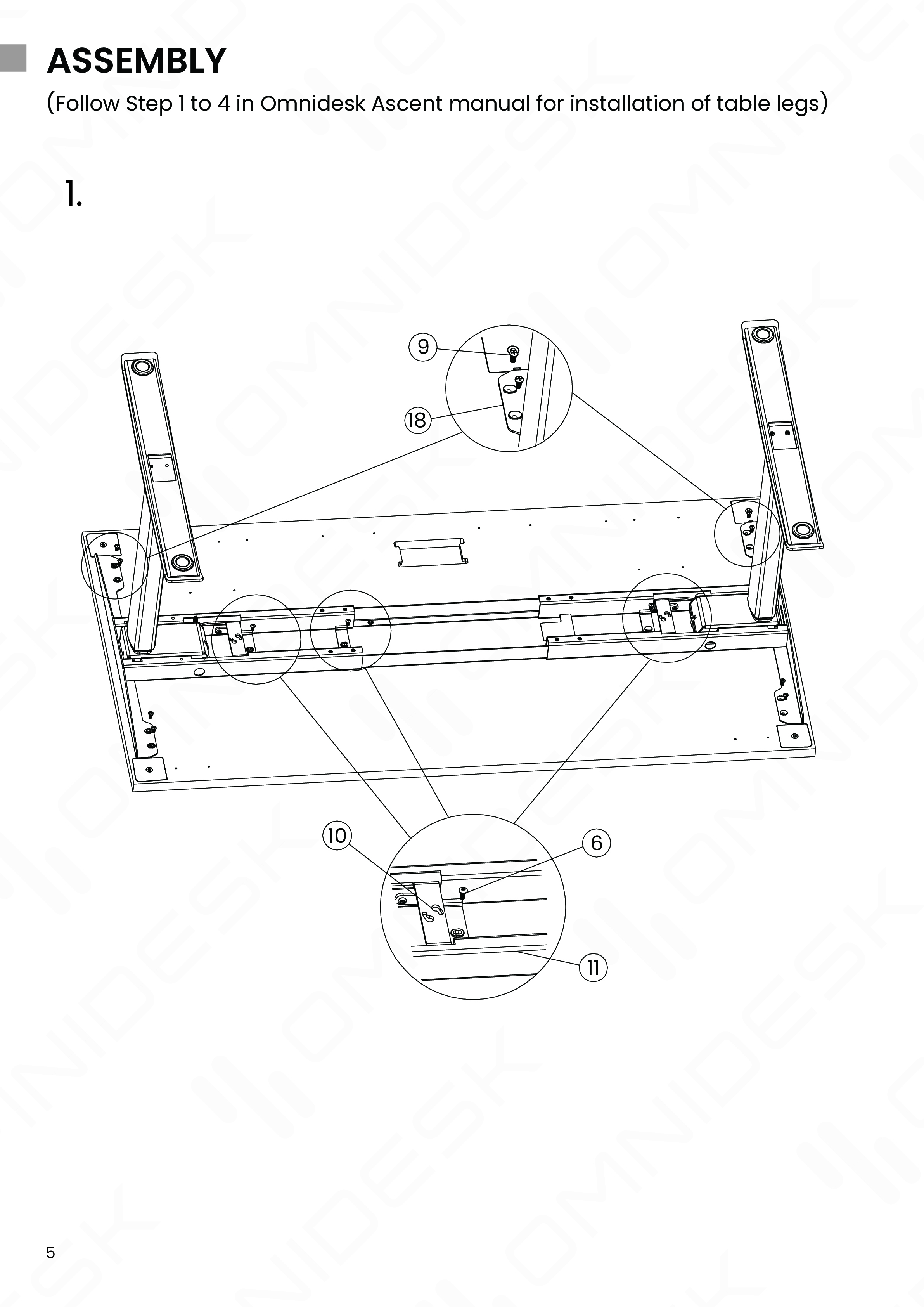

Follow Step 1 to 4 in Omnidesk Ascent manual for installation of table legs

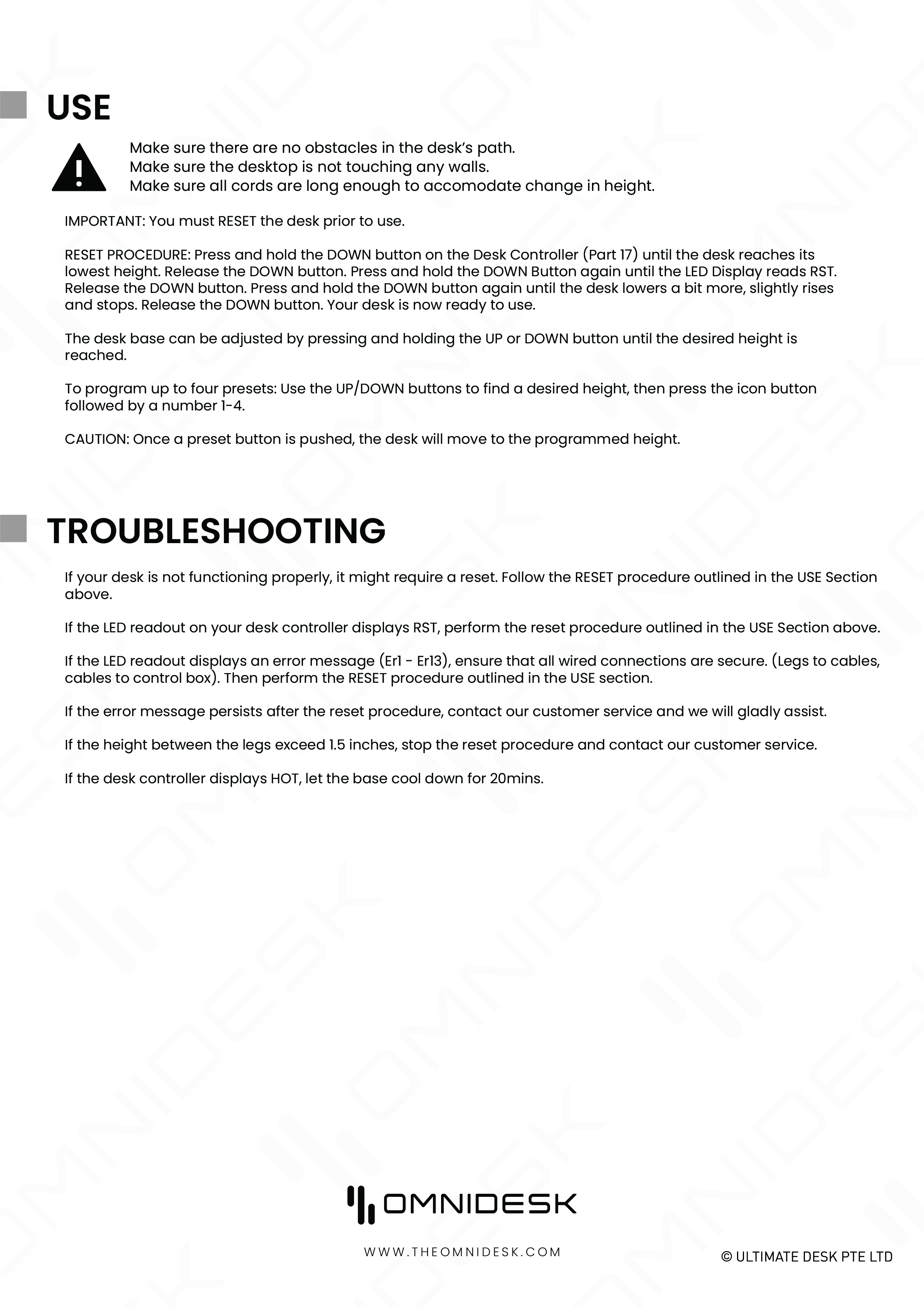

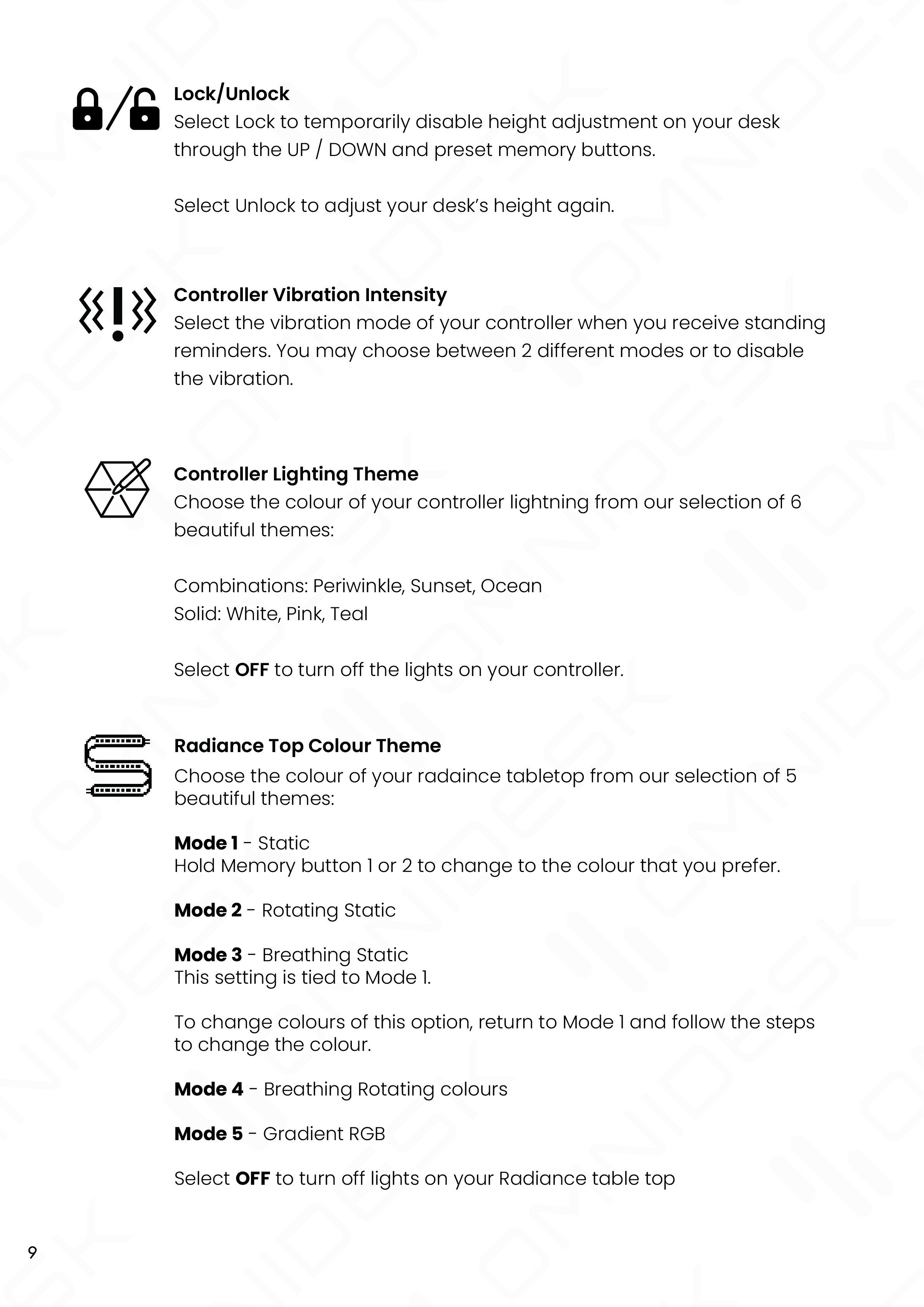

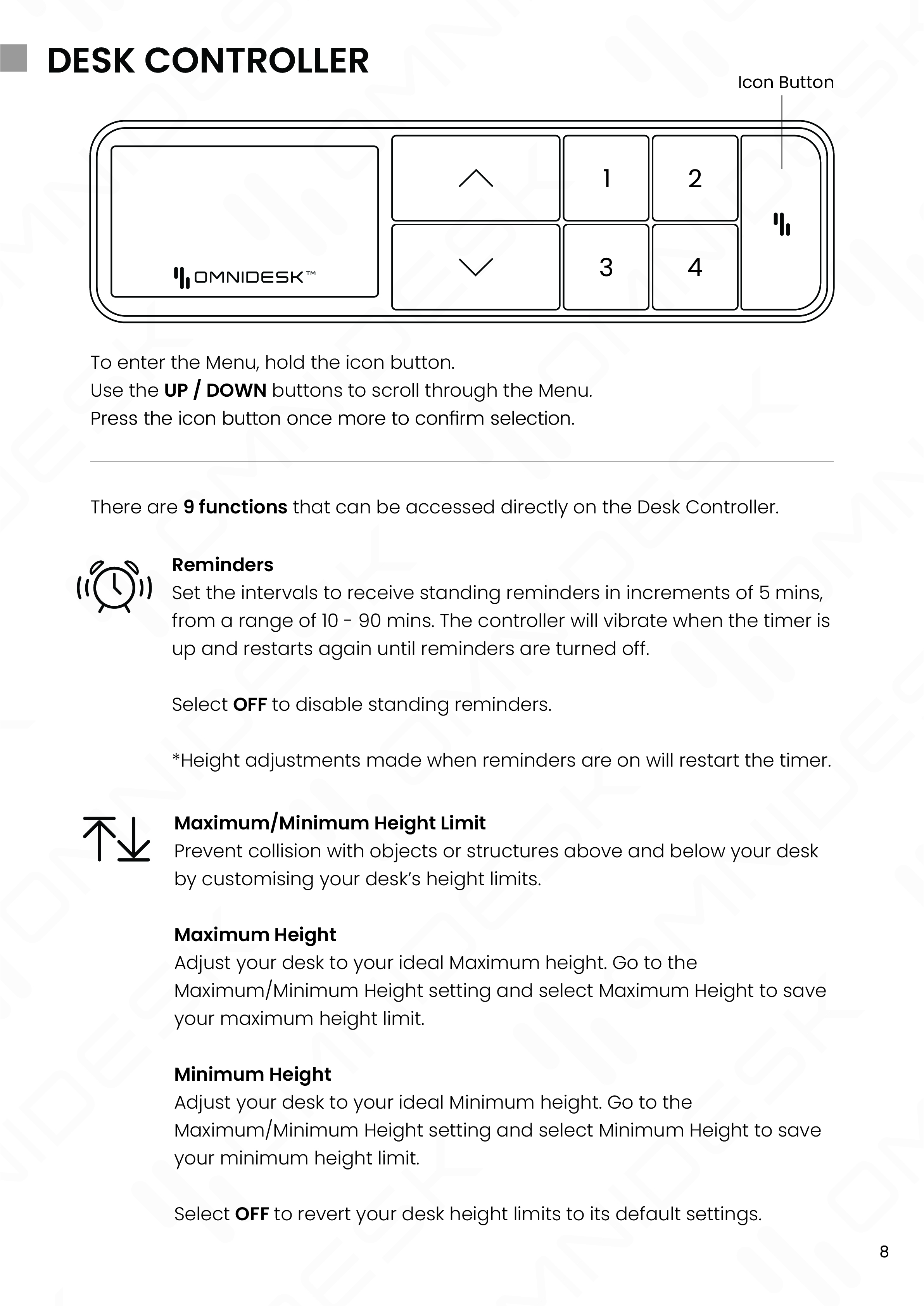

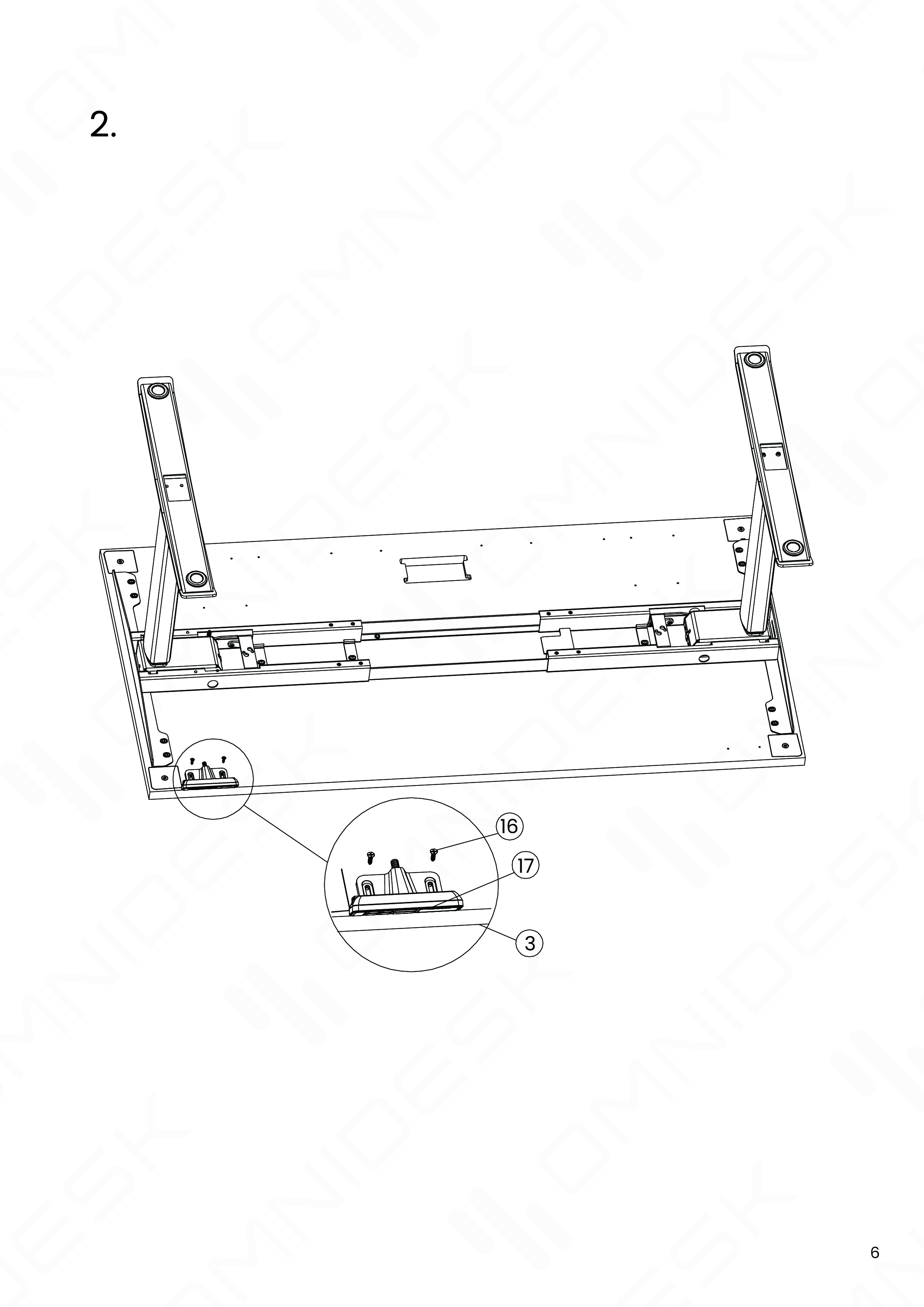

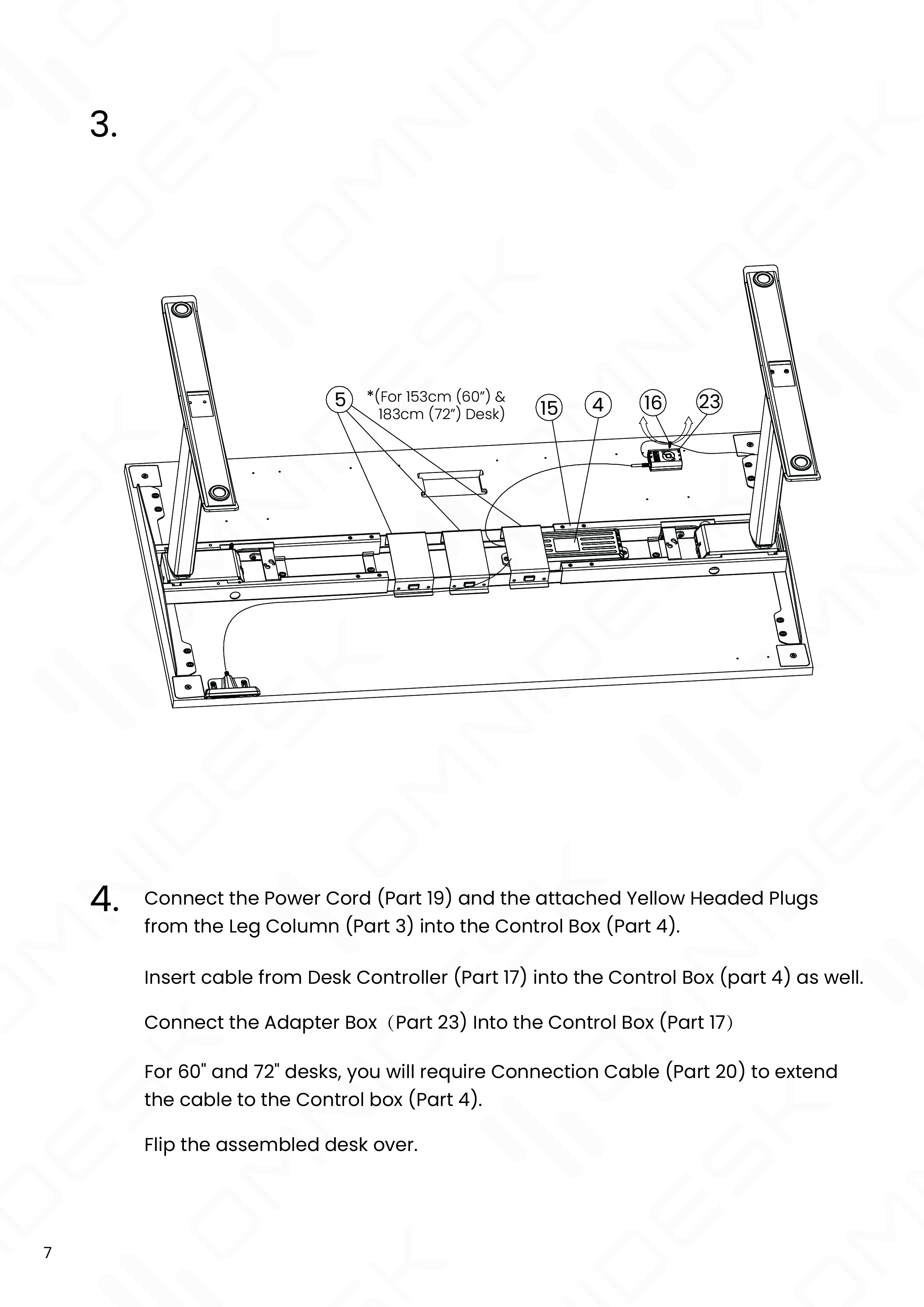

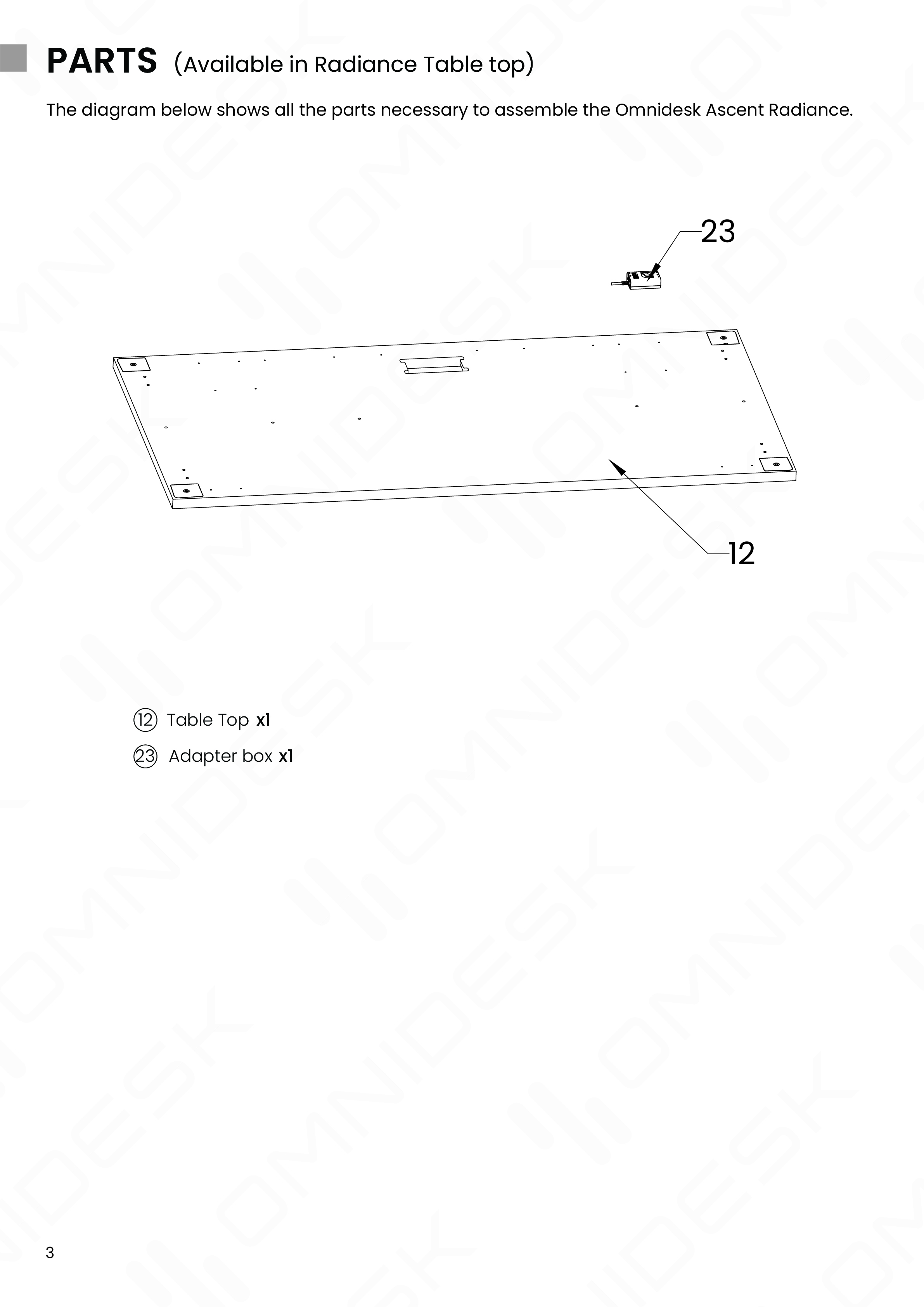

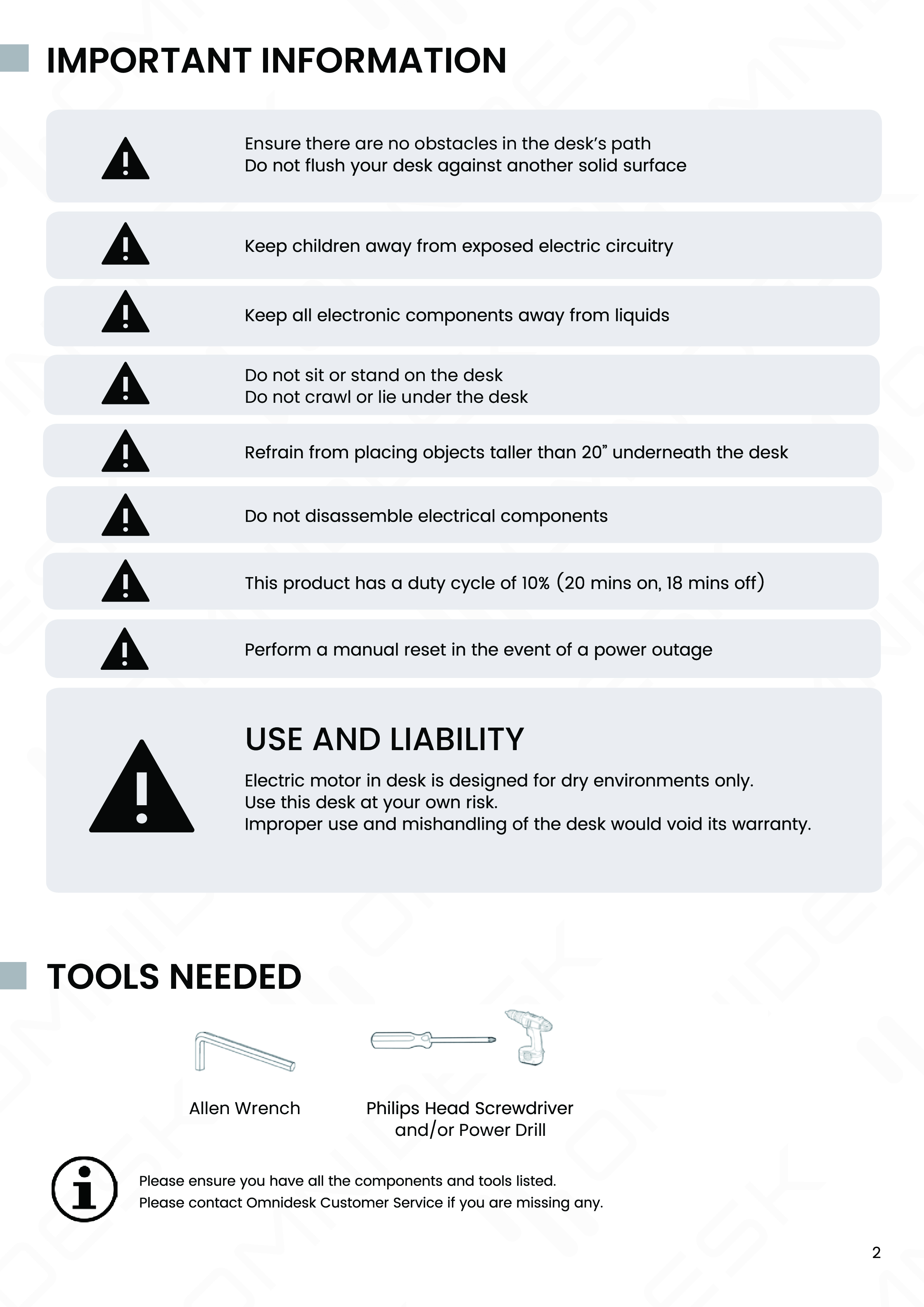

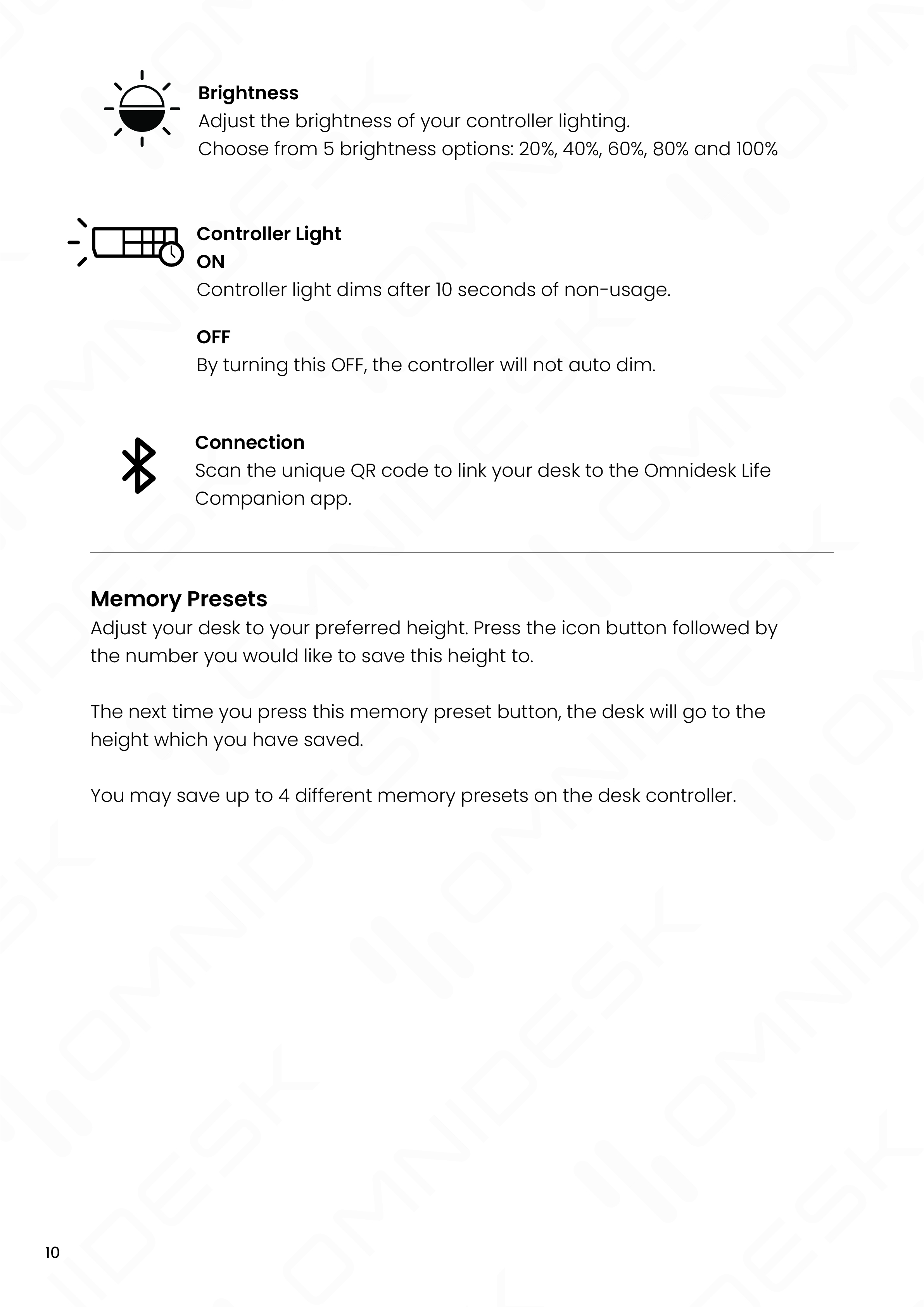

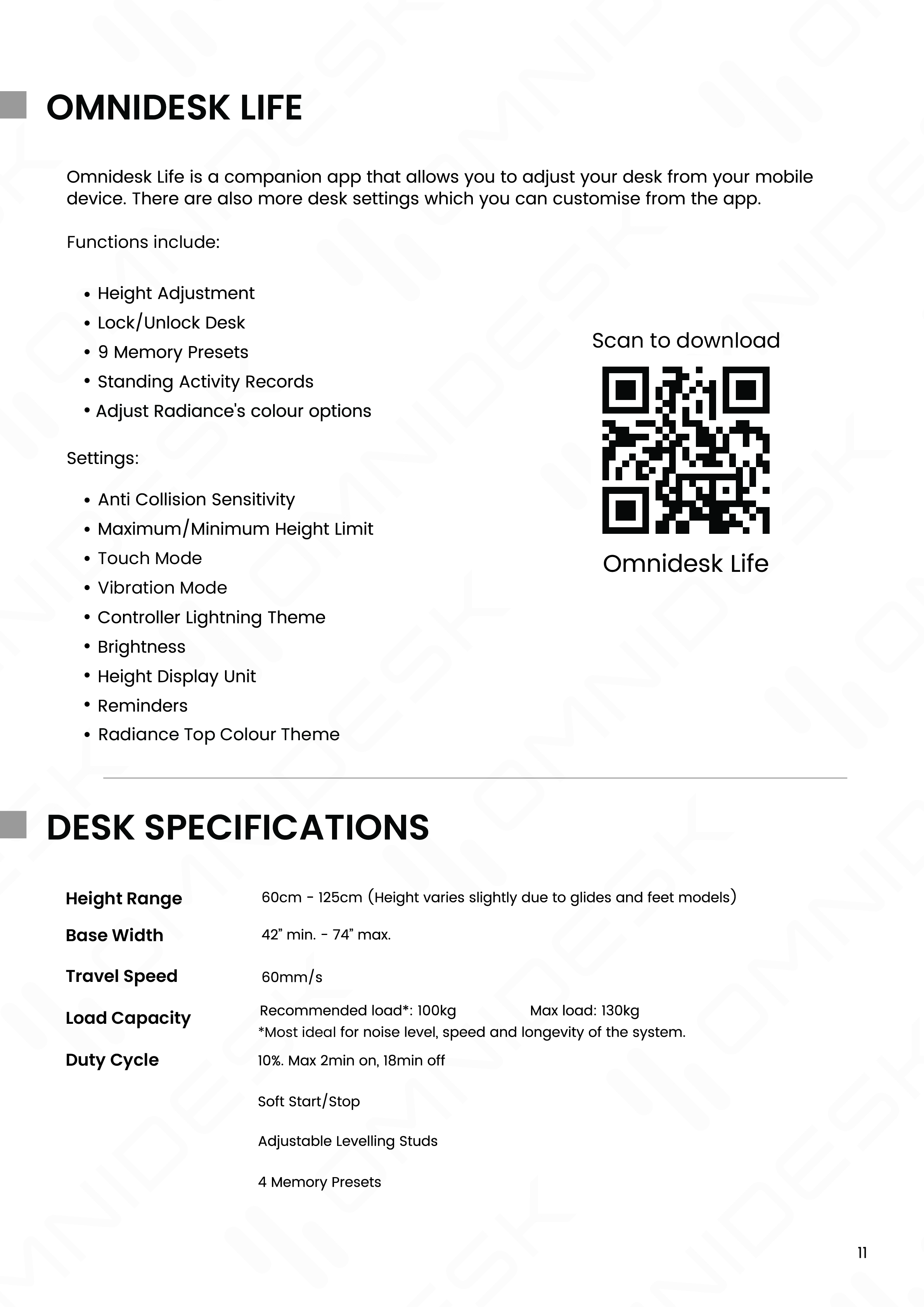

Radiance_Page_5.jpgRadiance_Page_6.jpgRadiance_Page_7.jpgRadiance_Page_8.jpgRadiance_Page_9.jpgRadiance_Page_10.jpgRadiance_Page_11.jpgRadiance_Page_12.jpg
