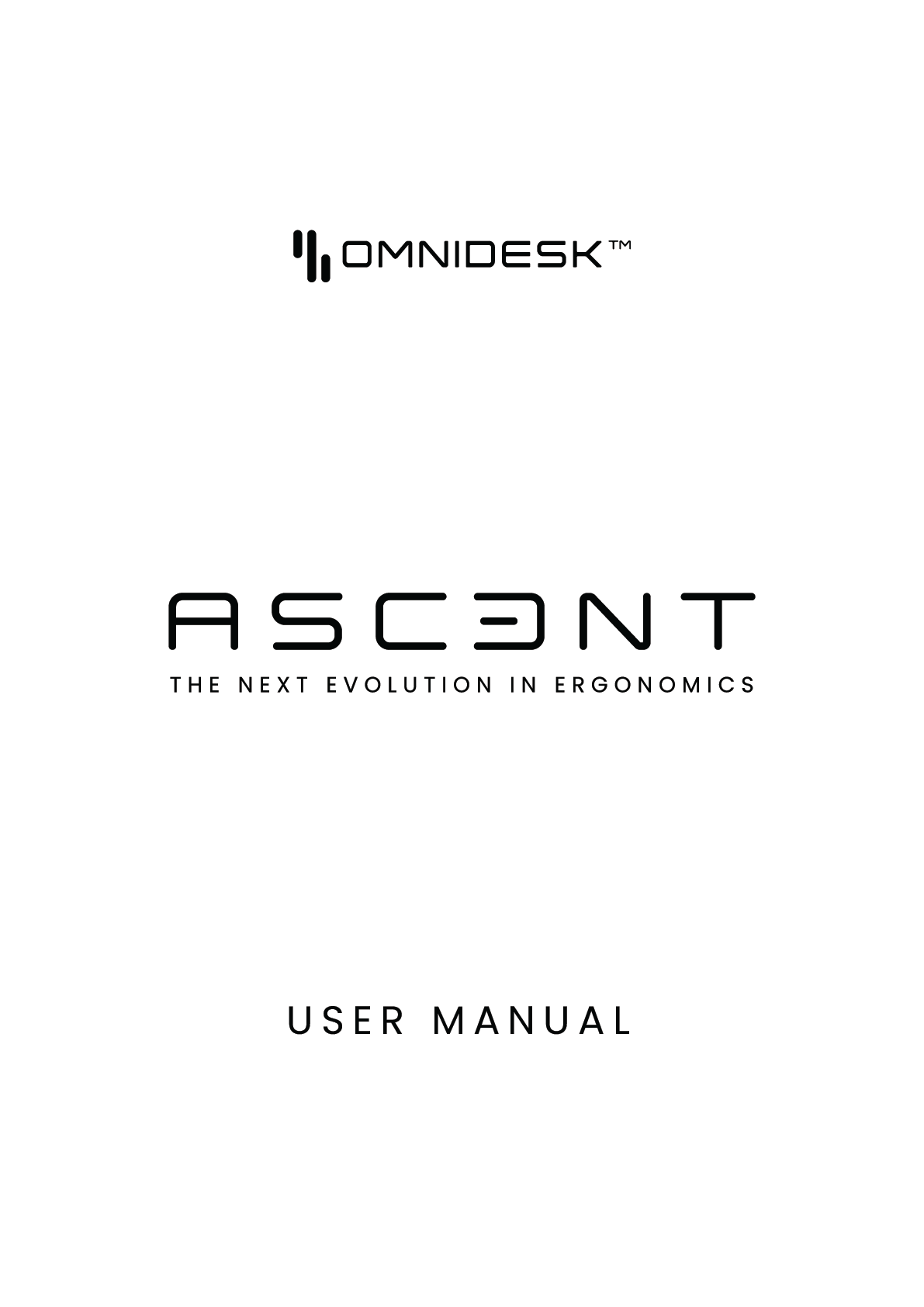

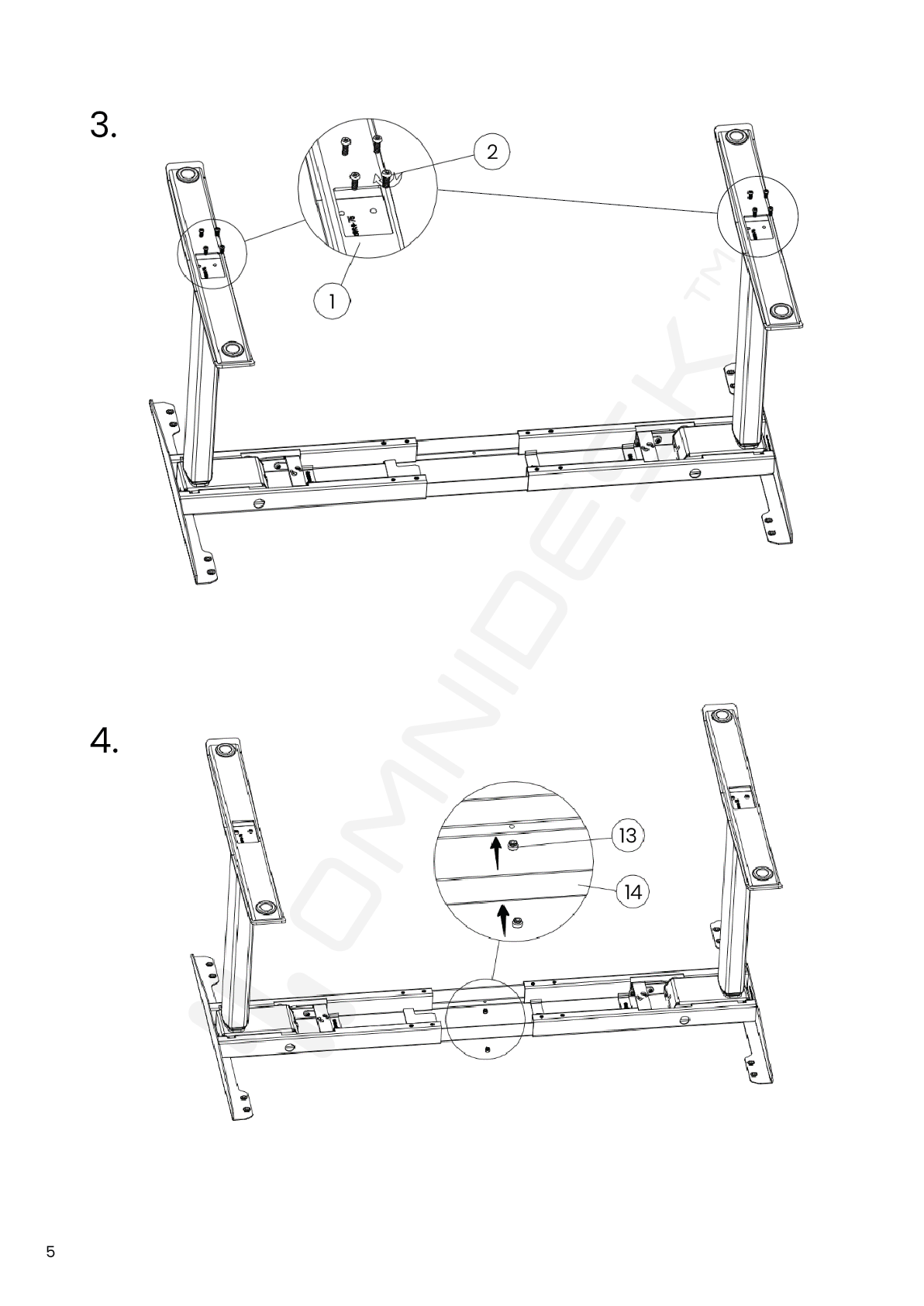

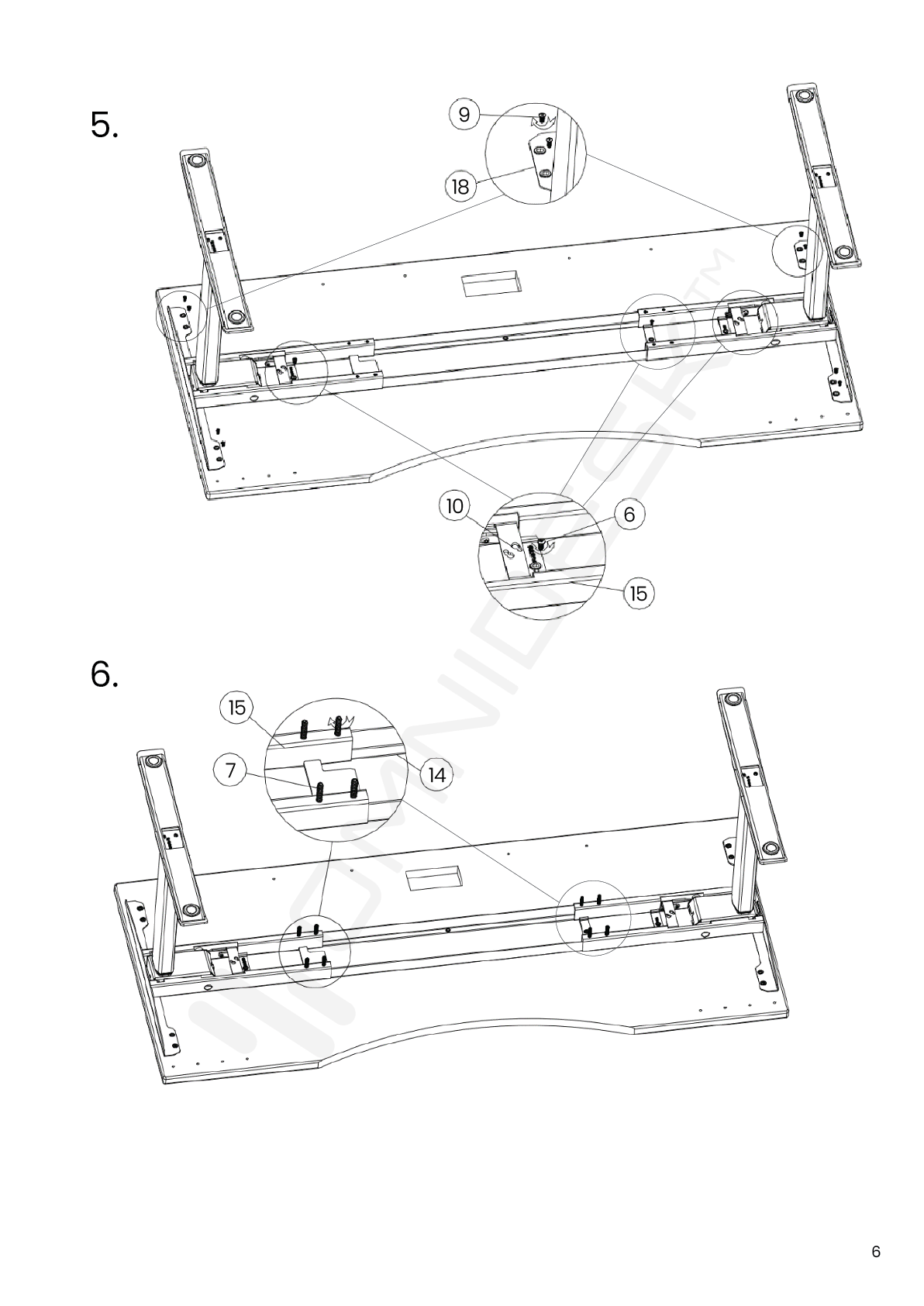

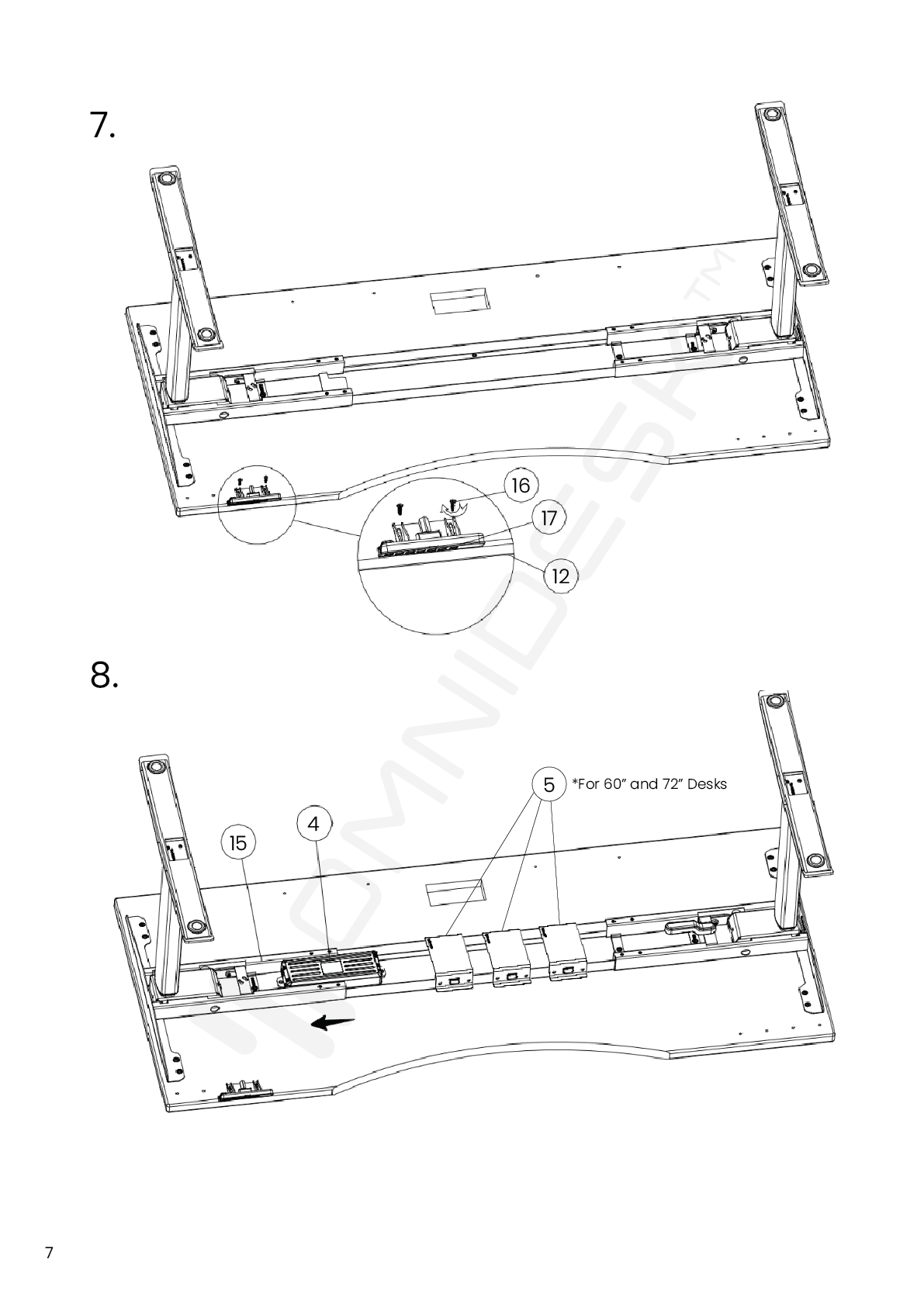

(Installation Guide) Omnidesk Ascent

April 23, 2025 08:48



You can refer to the video below for the full setup of the desk:

🔗 Shop Now
